Promotions

Core-commerce is powered with a highly configurable promotion engine. To make sure we can offer high reliability and predictability. Promotions are defined using templates, for example: Free shipping or Get 3, Pay 2. This to make sure we can create unit tests for all scenarios and know exactly what the promotions need to support.

Promotion attributes

In the OMS management module 'Promotion attributes', attributes can be managed which can be used while configuring a promotion. By defining the attributes before the actual configuration, we make it easier for customers to configure promotions.

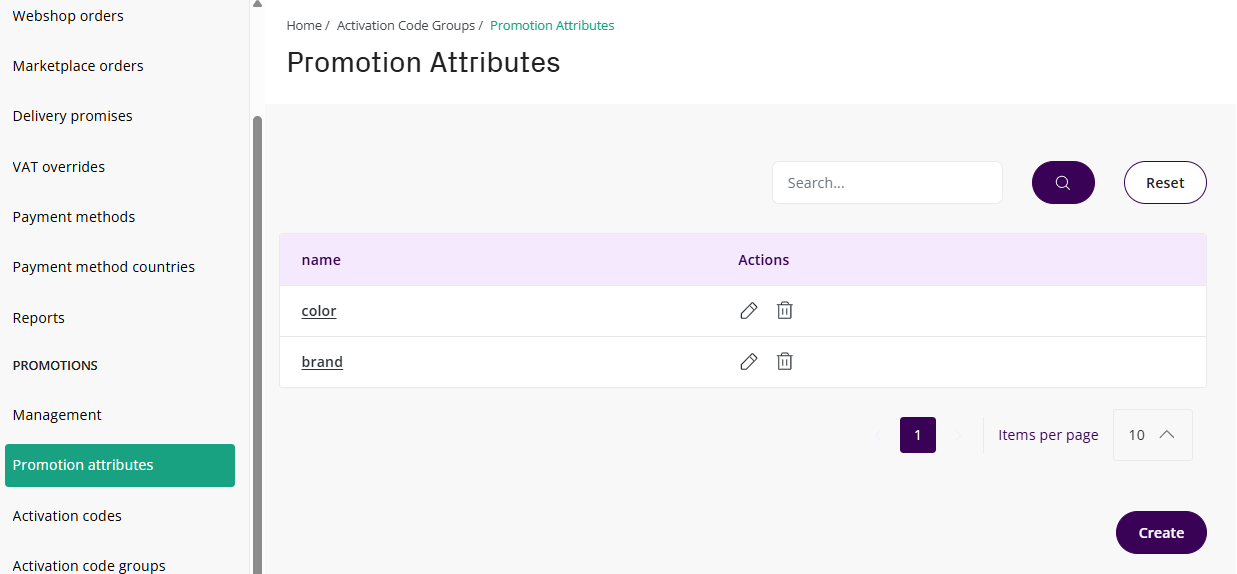

List view

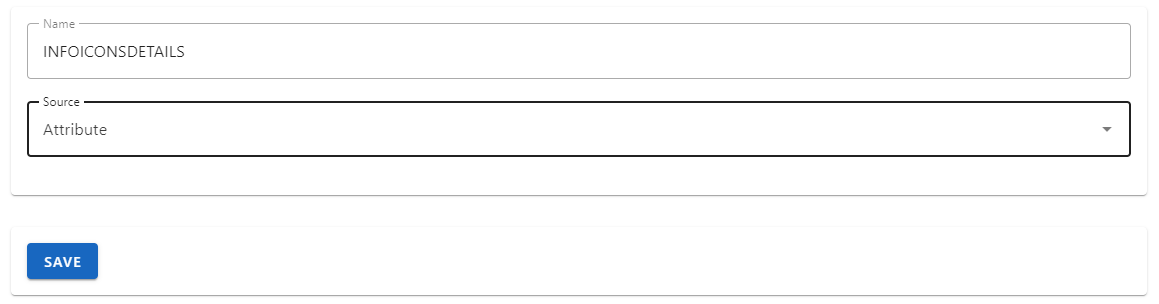

Detail view

Management module

The Promotions management module in the OMS is used for creating, updating and deleting promotions. Activation codes (also known as discount codes) are linked to a promotion with a activation code group.

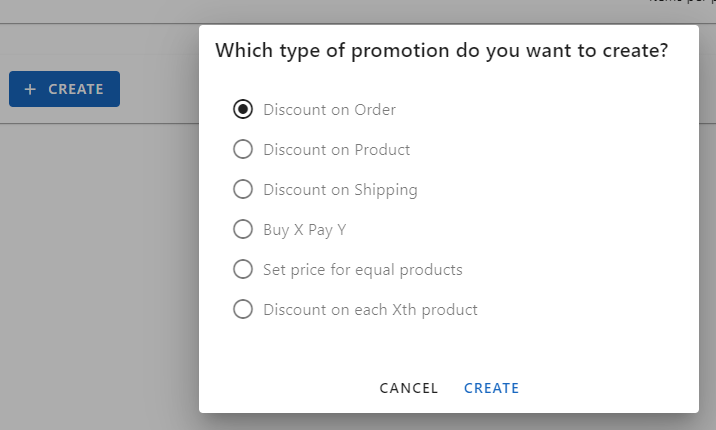

Promotions are created by using a wizard which helps the user setting up the correct promotion. After clicking on 'create', the user can select the promotion type followed by clicking on 'create':

::: tip ✔️ Wizard steps and fieldsDepending on the promotion type, the wizard, options per step and required fields are determined.:::

Step: General

In the 'general' step the user can set the base information for a promotion:

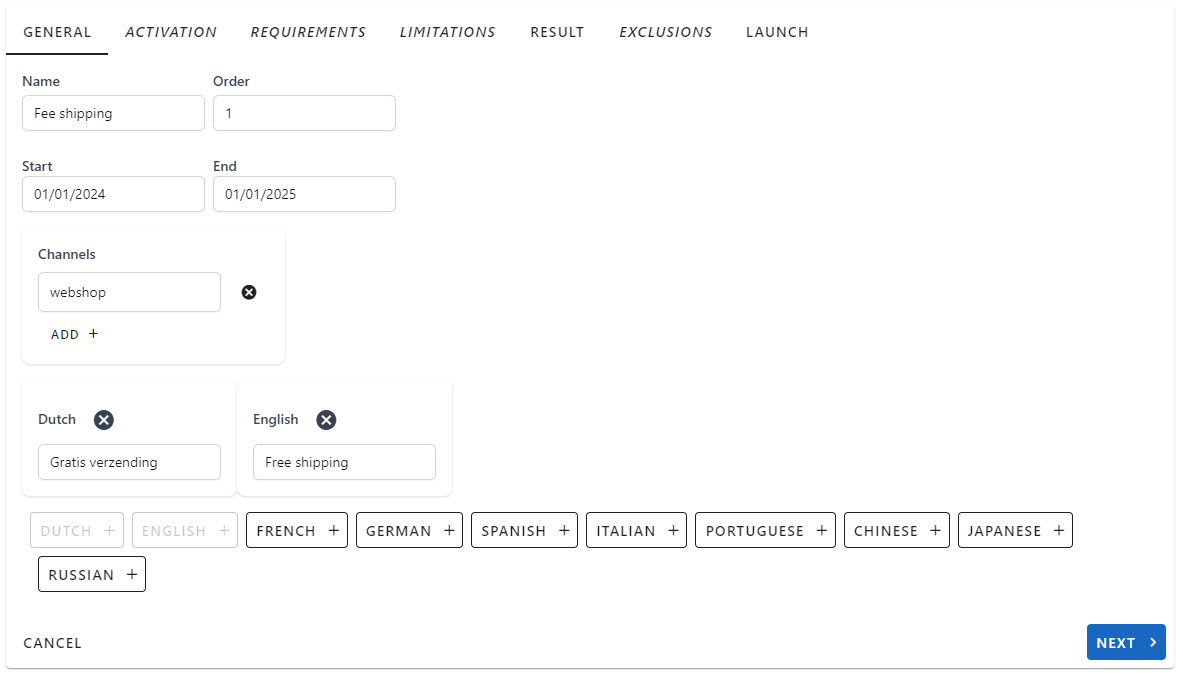

Example 'General' step

Step: Activation (Optional)

In this optional step, an activation code group can be selected. By configuring this, customers will need a valid activation code from this group to activate the promotion.

Step: Requirements (Optional)

In this optional step, the requirements can be set, which are applied on the promotion.

There are two types which can be used together, for optimal flexibility.

Attributes configuration

Matching on product attribute values is case insensitive and will be done with the product information from the DMS. This means that all attributes should be available in the DMS, this for example for matching on:

• Musthave
• Brand
• Category

For all configurations both including and excluding can be done. For example, this means you can include all 'musthave' products, except for a specific brand by excluding this brand.

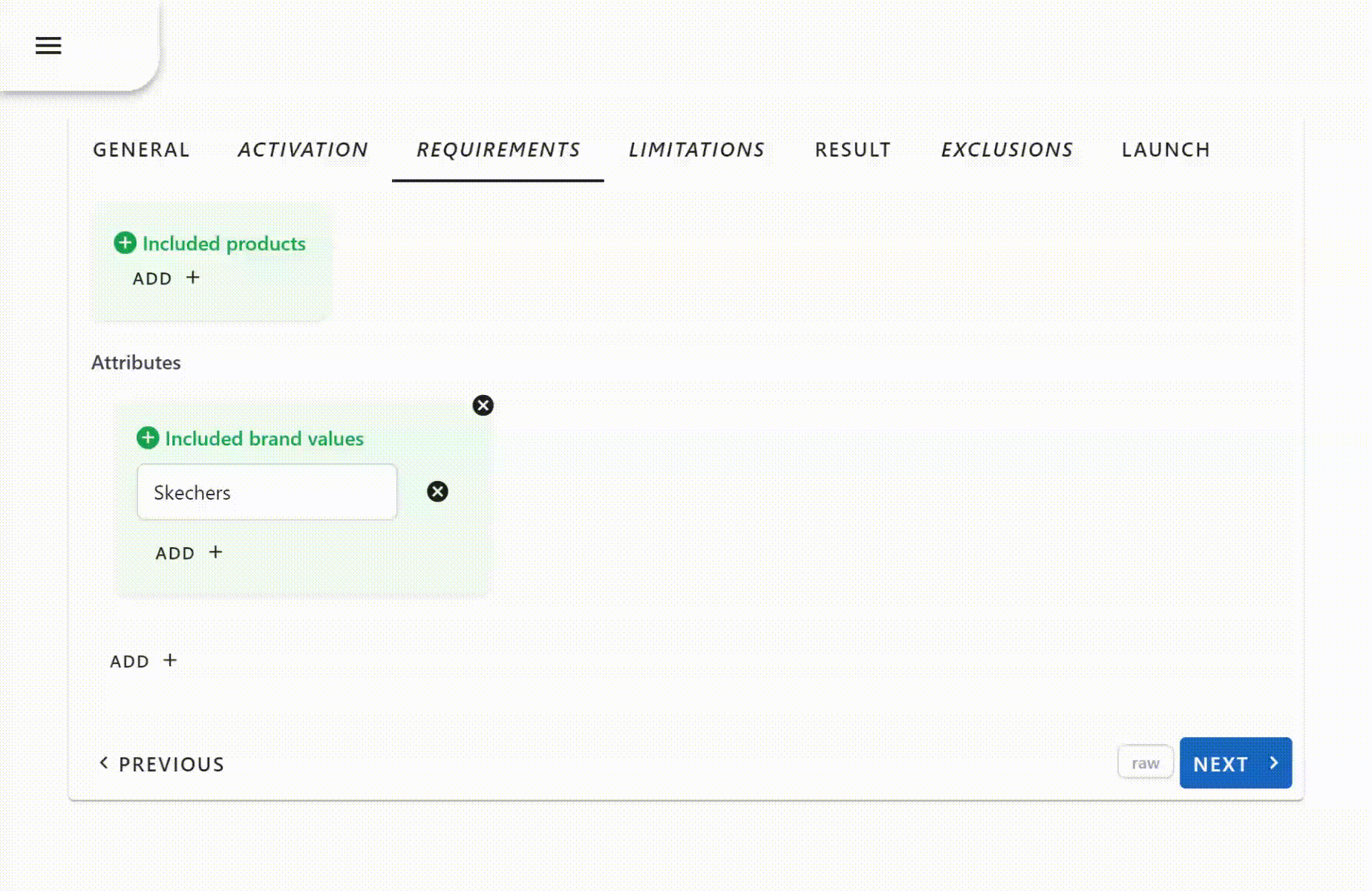

Toggling exclude/include can be done by click on 'Included..' or 'Excluded' as following:

Multiple values can be set where multiple values for the same attribute, will be seen as an OR selection and multiple attributes as an AND selection.

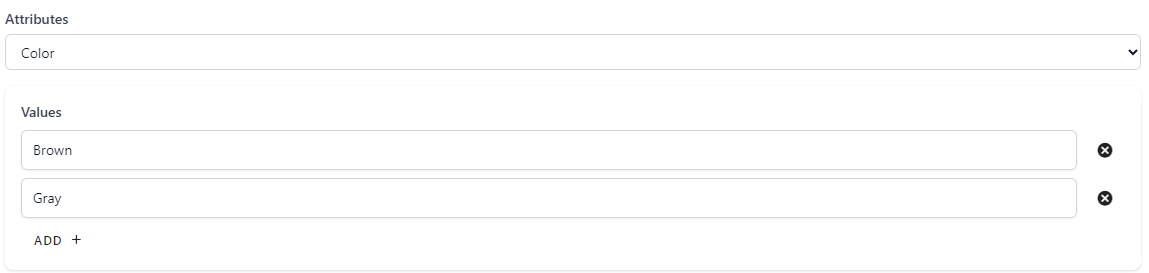

The following configuration will match all 'brown' or 'gray' products:

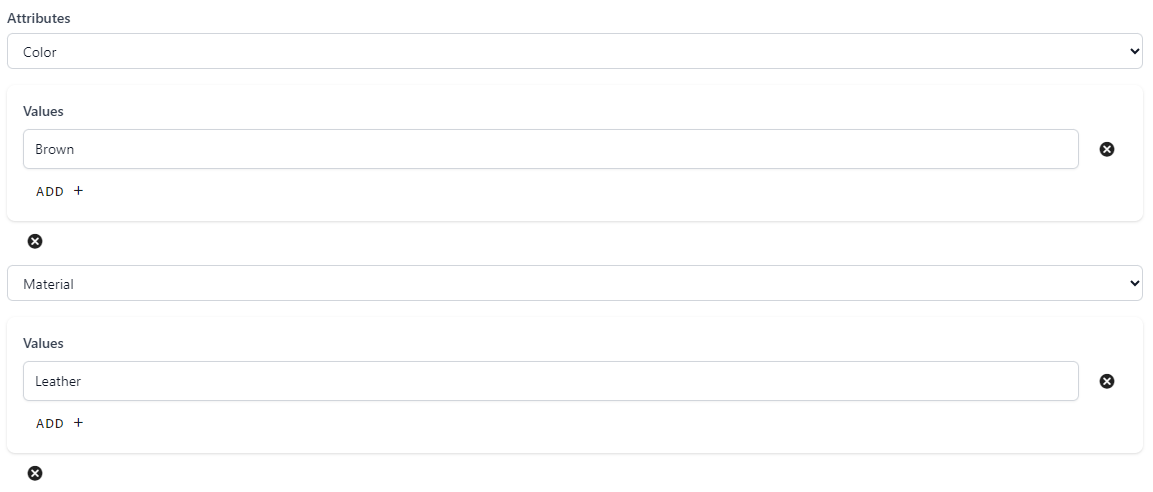

The following configuration will match all 'brown' products with the material 'leather':

::: tip ✔️ Requirements logicWhen multiple requirements are configured, requirements are checked one-by-one from top-to-bottom.:::

Step: Limitations (Optional)

In this optional step, the limitations can be set, which are applied on the promotion.

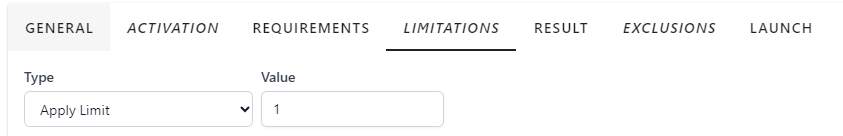

Example 'Limitations' step

Step: Result

On the 'Result' tab the result of the promotion can be configured.

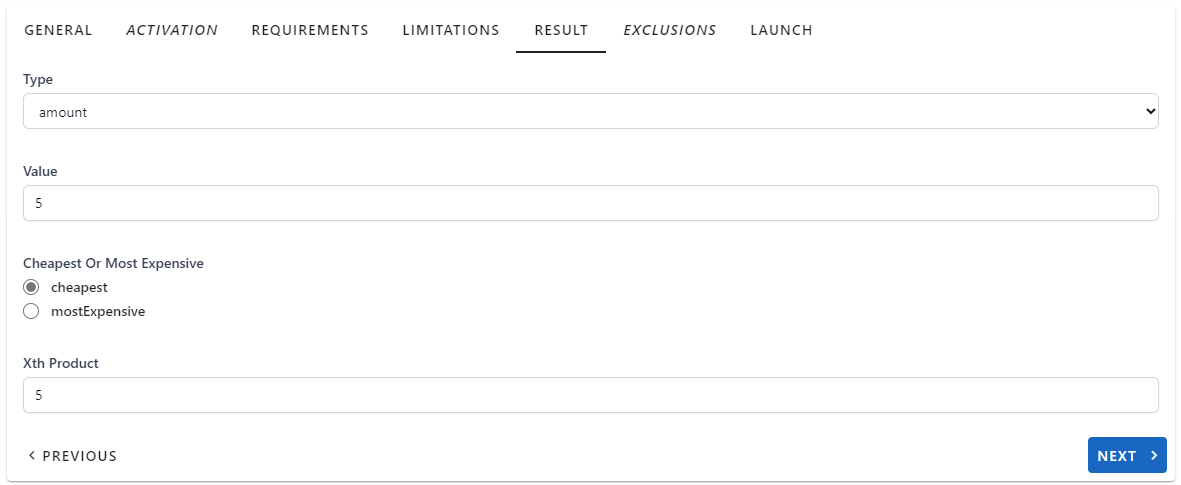

Example 'Result' step

Step: Exclusions (Optional)

On the 'Exclusions' tab it can be configured if this promotion can be applied with other promotions.

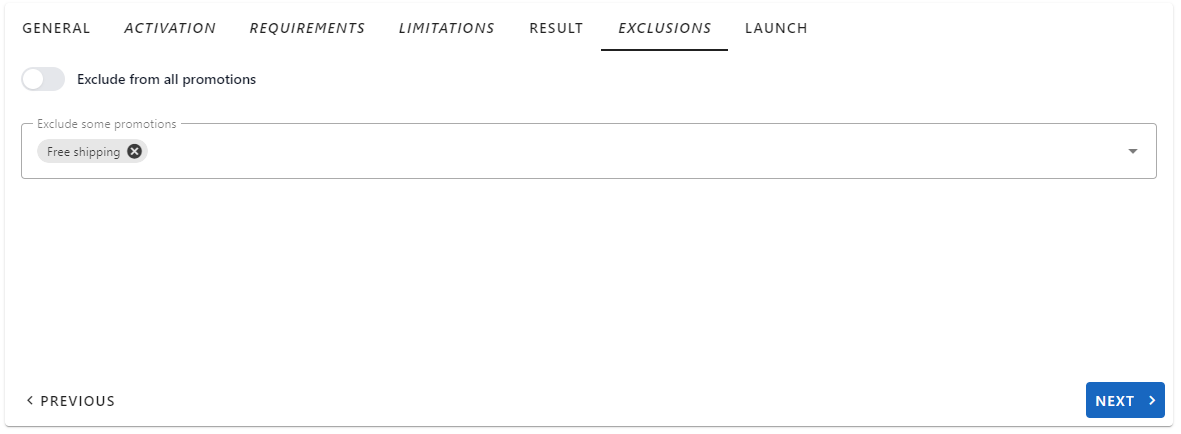

Example 'Exclusions' step

Step: Launch

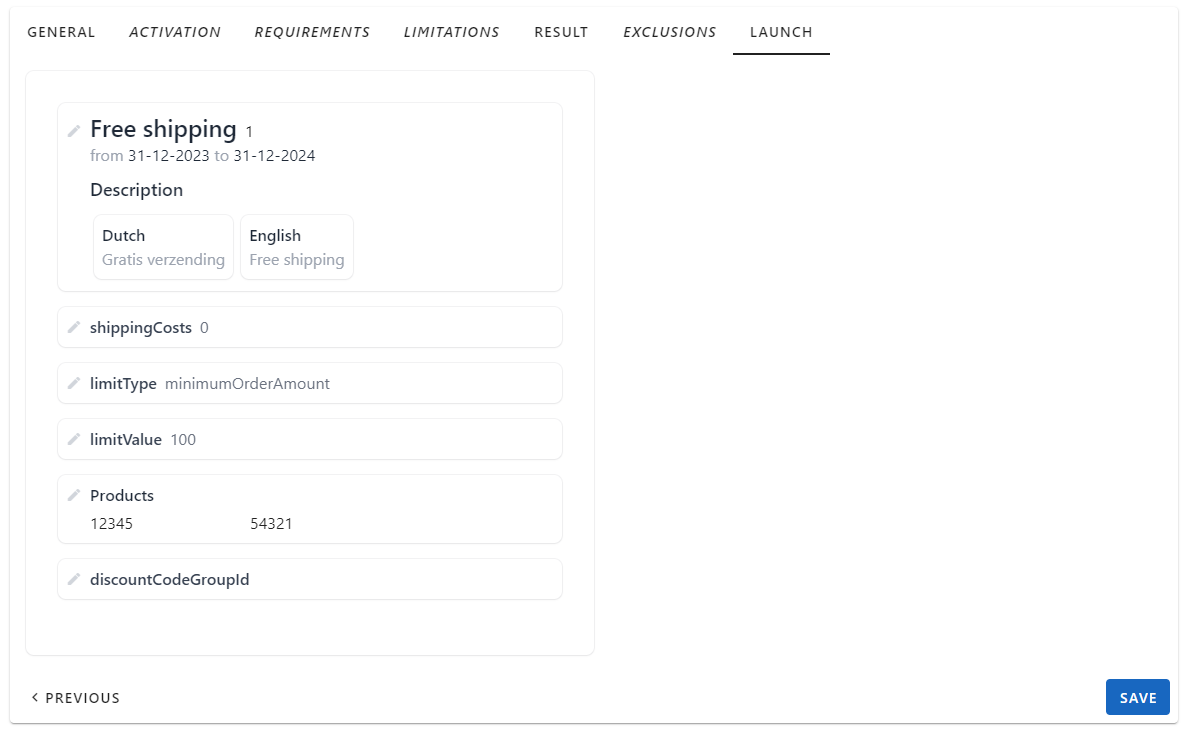

In the launch step, the current configuration is shown for the active promotion. By clicking on the 'pencil icon', it is possible to change the specific value:

Promotion types

Although our promotion engine is highly configurable, we have chosen to create and manage promotions using a template selection followed by a wizard to guide users through each step and validate the new promotion configuration in the last summary step.

Roadmap

The following promotions are currently on our roadmap for implementation:

• Buy product X, get product Y for free
• Fixed price for bundle of products
  • For example shirt, trouser & socks for X euro

Activation codes

Activation codes are added to a activation code group, which can be linked as an optional requirement for most promotion types.

In the OMS it is possible to generate activation codes, the activation codes generations configuration can be done in the scaling configuration under:

• oms.activationCodes

Activation code groups

List view

By clicking on 'Save and continue' changes will be saved and screen will be reloaded.By clicking on 'Download CSV', the activation codes in the group can be downloaded. This can be useful when these codes need to be imported in an Third Party system like an Email service provider.

Per activation code group the following fields can be configured.

By clicking on 'Create and continue' the new group will be created and the user will be shown the edit screen.By clicking on 'Save and continue' changes will be saved and screen will be reloaded.

By clicking on 'Download CSV', the activation codes in the group can be downloaded. This can be useful when these codes need to be imported in an Third Party system like an Email service provider.

Activation codes

In the activation codes management module, the generated activation codes can be seen:

Per activation code the following information is visible.

Each activation code has one of the following states:

• 0: Reserved (default)
• 1: Confirmed
• 2: Canceled

These states will be used to determine if the transaction code is still valid, or if it can be reused.

Promotion results

Promotion results are added in the ShoppingCart calculate endpoint. This endpoint can be called with an optional array of activation codes to be applied. In the shopping cart calculation, the activation codes and promotions are validated and checked.

Validation results are added in the validationResult, this can be used by integration teams to correctly inform customers.

Activation code validation results are added in the messages collection. Currently this only has the 'ActivationCodeMessage', but this will be extended later.

ActivationCodeMessage returns the activation code and one of the following return types:

• NotFound
• Expired
• Redeemed

Example Calculated shopping cart

{
	"lines": [
		{
			"sku": "100",
			"quantity": 1,
			"totalAmount": 50,
			"totalAmountFrom": 50,
			"vatTotalAmount": 8.68,
			"vatTotalAmountFrom": 8.68,
			"vatRate": 0.21
		}
	],
	"discounts": [
		{
			"name": "Promotion.Name",
			"code": null,
			"totalAmount": -10,
			"vatTotalAmount": [
				{
					"amount": -1.74,
					"rate": 0.21
				}
			]
		}
	],
	"shippingCosts": 2.5,
	"paymentCosts": 1.95,
	"totalAmount": 44.45,
	"vatBreakdownItems": [
		{
			"breakdownType": "Total",
			"vatRate": 0.21,
			"amount": 44.45,
			"vatAmount": 7.71
		},
		{
			"breakdownType": "Shipping",
			"vatRate": 0.21,
			"amount": 2.5,
			"vatAmount": 0.43
		},
		{
			"breakdownType": "Payment",
			"vatRate": 0.21,
			"amount": 1.95,
			"vatAmount": 0.34
		}
	],
	"validationResult": {
		"isValid": true,
		"messages": [
		]
	}
}

Product promotions

Core-commerce has advanced support for getting the active promotions (advertisable) for a product including the calculated prices (discounts). This can be extremely useful to show correct pricing and the active promotions in the front-end.

Discounts

For determining 'discounts', only 'Active promotions' are being used:

• Promotion type is 'Discount on Product'
• No exclusions set

In the pricing calculation, the 'Minimum order amount limitation' is being applied when it is not a multiple [x], so that a discount like '10% discount > minimum order amount 30 euro' is correctly applied in the pricing.

Advertisable

For determining 'advertisable', the following conditions apply:

• No activation code group configured

Example advertisable with discounts

var expectation = new CalculatedItem()
{
  Promotions = new List<AdvertisablePromotion> { new() { Name = "Promotion.Name" } },
  Pricing = new CalculatedPricing
  {
   PriceFrom = 70m,
   VatPriceFrom = 12.15m,
   VatRate = 0.21m,
   Price = 50m,
   VatPrice = 8.68m,
   Discounts = new List<CalculatedDiscount>
   {
    new () { Amount = -10, VatAmount = -1.74m }
   }
  }
};

Example advertisable without discounts

var expectation = new CalculatedItem()
{
  Promotions = new List<AdvertisablePromotion> { new() { Name = "Promotion.Name" } },
  Pricing = new CalculatedPricing
  {
   PriceFrom = 70m,
   VatPriceFrom = 12.15m,
   VatRate = 0.21m,
   Price = 50m,
   VatPrice = 8.68m,
   Discounts = new List<CalculatedDiscount>()
  }
};

To make use of this functionality, the OMS 'calculation' endpoints can be used:

• GET: Get Pricing without pricing attributes support
• POST: Get Pricing including pricing attributes support

In the response the following logic is applied:

For correct pricing, the discounts values can be used to calculate the visible prices in the bespoke frontend.
