Sendcloud

When customers have Sendcloud, it is possible to use the dynamic checkout functionality (PaaS Only). In Core-commerce, we're exposing Sendcloud functionality through our OMS API definition, which integration teams can use for the implementation in the front-end.

Step 1: Configuration

In the OMS the configuration can be done under "Settings" and then in the tab "Sendcloud".

Field	Remarks
Config ID	Configuration ID for published dynamic checkout
Public Key	Public key from Sendcloud
Secret Key	Secret key from Sendcloud
Name	Select default country
Test	When checked, test mode will be applied

Get configuration from Sendcloud

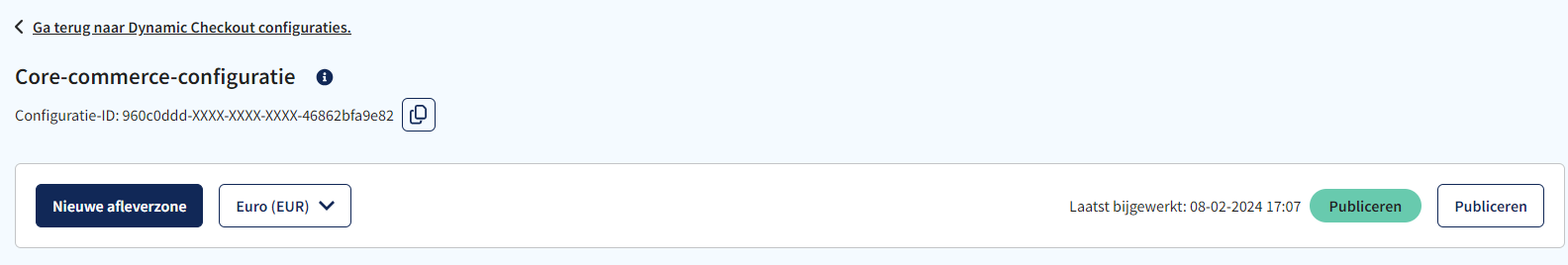

To get the correct configuration ID login to Sendcloud and go to Dynamic Checkout. Click on "Edit" for the published configuration. In the new screen on top the configuration id can be copied. Edit icon

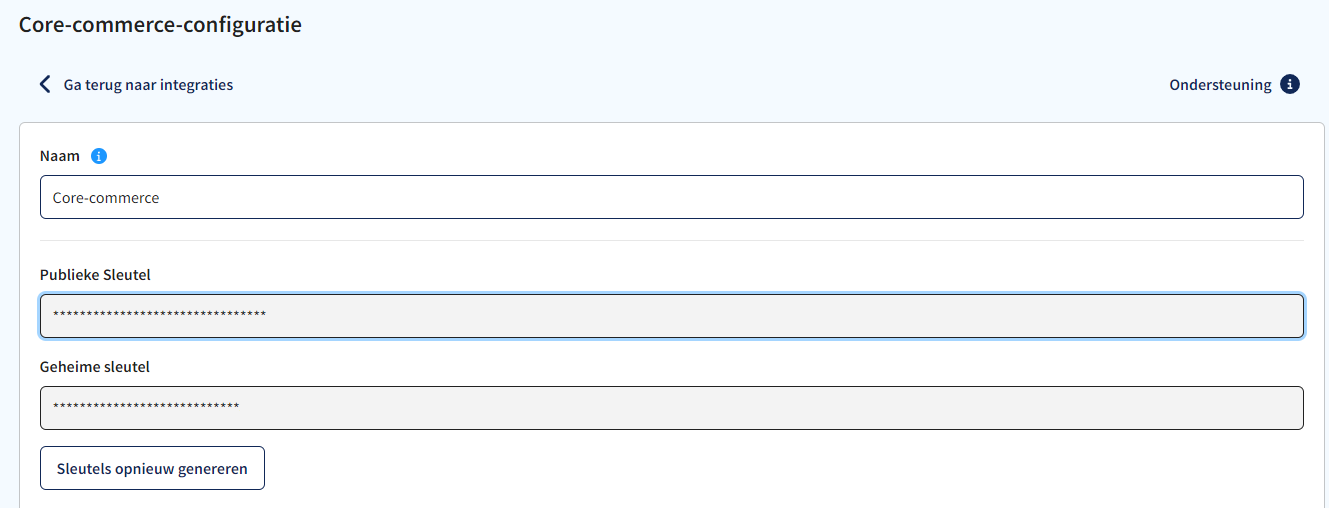

To get the correct keys, in Sendcloud goto Settings, click in the "Algemeen" menu on the right side on "Integraties". In the new screen click on "Configureren" for the used "Sendcloud API" integration.

Under "Publieke sleutel" and "Geheime sleutel" the keys can be found. If lost, new keys need to be generated: Edit icon

Step 2: Implement Standard & nominated day delivery options

After the configuration has been done, the following two endpoints can be used to implement Standard & nominated day delivery options.

GetOptions parameters

When using the GetOptions endpoint, the following request body parameters can be used:

Parameter	Remarks	Required
weight	Weight of the package in grams	Yes
value	Total order value, for filtering on delivery options	Yes
configurationId	When you want to use a specific configuration, instead of the default configuration ID from the Settings, the 'configurationId' parameter can be added in the request body	No
checkout_identifier_type	Defines the way of getting the shipping label via Sendcloud. Currently only 'method_id' is suppported	No
checkout_metadata	Arbitrary text data that can be used in combination with Checkout Rules to show or hide delivery options based on the value provided. For example, it can be used to filter delivery options based on the product SKU	No
parcel_height	Parcel height in centimeters. Examples: “48” or “52.3”	No
parcel_length	Parcel length in centimeters. Examples: “48” or “52.3”	No
parcel_width	Parcel width in centimeters. Examples: “48” or “52.3”	No

[
	{
		"key": "weight",
		"value": "123"
	},
	{
		"key": "value",
		"value": "123"
	},
	{
		"key": "configurationId",
		"value": "e48aebd1-bc3e-4ad6-9f8c-c7eb8fc4c7af"
	}
]

GetOptions attributes

The GetOptions endpoint will return the following additional attributes per delivery option.

Key	Value
SendCloud.InternalTitle	Internal title
SendCloud.DeliveryMethodType	Possible values: standard_delivery Same_day_delivery nominated_day_delivery service_point_delivery
SendCloud.CheckoutIdentifier.MethodId	Checkout identifier corresponding value. For example, if the type is method_id, the value will represent the id of the method as 3542
SendCloud.CutOffTime	Cut-off time for delivery method (optional)

Implementation instructions

Attributes on cart & order:
- Add "DeliveryOptionId" as an attribute to AddressDeliveryPreference in cart & order
- Add "DeliverySlotId" as an attribute to AddressDeliveryPreference in cart & order
- Save additional info on attributes
Front-end integration
- Create DeliverySlot component & adjust to available options (e.g.: with & without date-selection)
- Before slot/carrier selection in checkout, send "Default shipping costs" as shippingCosts to cart calculation endpoint
- After slot/carrier selection in checkout, send shippingCosts to cart calculation endpoint
- Add "DeliveryOptionId" as an attribute to AddressDeliveryPreference in cart & order
- Add "DeliverySlotId" as an attribute to AddressDeliveryPreference in cart & order

Step 3: Implement Pickup locations

1. GetDeliveryOptions

When the servicepoint delivery is enabled in SendCloud, the dynamic checkout module in SendCloud is used to determine whether the pickup delivery is available for your package, just like you can do for your other delivery options.

2. Show pickup location option in your checkout

You can recognize delivery option types by the 'SendCloud.DeliveryMethodType' attribute. When the value is 'service_point_delivery', it is a pickup delivery option.

There might be multiple carriers available (PostNL, DPD, DHL). It's up to the integration team to group them in one integration, let the customer choose their own carrier, or make any other choices in the integration platform.

3. Get the pickup locations for your carrier(s)

When the customer chooses for service_point_delivery, you should adapt the UX to make sure the customer can choose a pickup location, or is directed to the nearest by default. To do this, you should call the 'GetPickupLocations' endpoint in Core-commerce, using the carrier code of the selected delivery option. When using a grouped view for multiple carriers, it's important to make sure the carriers from your available DeliveryOptions are passed as parameters.

4. Show pickup locations & handle cart

The integration platform is handling the selection of the correct pickup location & store the pickupLocationId on the cart. It's recommended to use the 'PickupDeliveryPreference' in the cart, so that we'll convert the data to the order automatically. An optional address can be added, for extended VAT calculation based on the countrycode. This field is mandatory when sending in an address.

5. Export order to ERP

When exporting an order to the ERP, you can recognize your pickup order & collect the pickup location data if necessary, using the Core-commerce API for pickup locations.Sendcloud
